F6 paper frame medium efficiency filter

Item No.: AP-60A; AP-100A

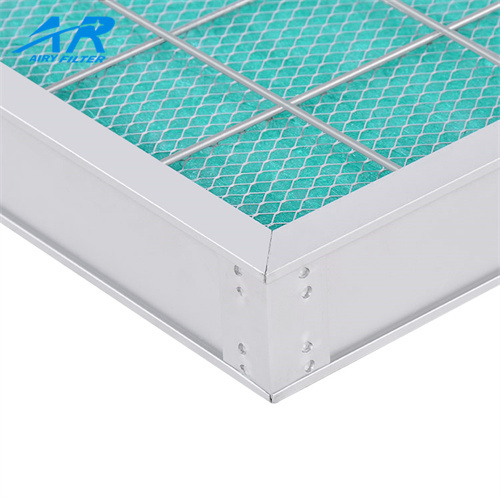

F6 paper frame medium efficiency filterThis filter is designed to capture particles such as dust, pollen, and mold spores, providing cleaner air for your space. The F6 paper frame medium efficiency filter is easy to install and replace
Description Technical Parameters Specifications Review
Description

Features:

  • *The filter is designed with gradual density of filter fibers and stratified filtering, which makes it highly effective in removing particles of varying sizes.
  • *It has a high dust holding capacity and long service life, which makes it require less maintenance.
  • *The air outlet surface has a film treatment, which provides a stable structure that prevents the filter from dropping chips.
  • *Its strong absorptive power effectively filters paint mist and oil mist, which ensures workspaces remain clean.
  • *This filter possesses excellent moisture-proof, elasticity, acid and alkali resistance, and high temperature resistance, making it both durable and reliable.


Applications:

  • *The filter is mainly used for the discharge filtration of paint mist or industrial oil mist from painting systems, thus ensuring safety in the workplace.
  • *It is also suitable for pre-filtration of general ventilation, which helps maintain clean air quality in industrial settings.
Technical Parameters

 Main Material

 Fiberglass fiber

 Filter Object

 Paint mist, oil mist, dust particles

 Filtration Class

 G3G4(EN779)

 Color

 Green-white,Blue-white, yellow-white,

pink-white,  and white

 Final Resistance

 200Pa(suggestion)

 Temperature Resistance

 200℃

 Flammability Rating

 F1(DIN 53438)B1(GB/T 17591-2006)

 Moisture Resistance(relative humidity)

 100%



Specifications

Model

Filtration

 Class

Thickness

(mm)

Weight

(g/)

Dust holding Capacity

(g/)

Rated air velocity

(m/s)

I.N.P

(Pa)

Average Arrestance

AP-60

G3

60

250

3200

1.5

20

85%

AP-100

G4

100

300

4500

1.5

25

90%
