Synthetic Fiber Primary Pleated Air Filter For Industrial Synthetic Fiber Primary Pleated Air Filter For Industrial Synthetic Fiber Primary Pleated Air Filter For Industrial Synthetic Fiber Primary Pleated Air Filter For Industrial Synthetic Fiber Primary Pleated Air Filter For Industrial Synthetic Fiber Primary Pleated Air Filter For Industrial Synthetic Fiber Primary Pleated Air Filter For Industrial Synthetic Fiber Primary Pleated Air Filter For Industrial

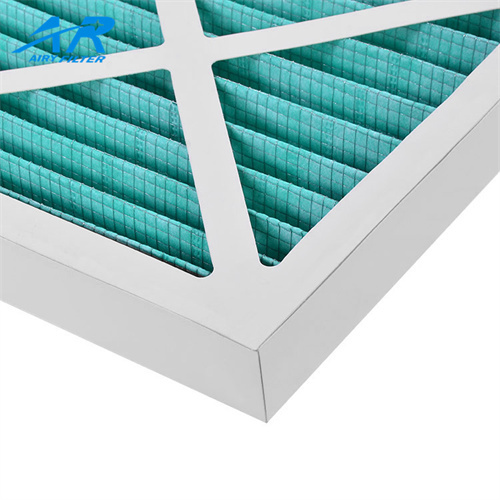

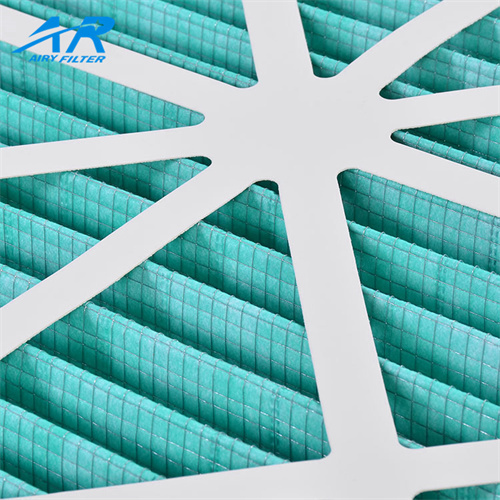

Synthetic Fiber Primary Pleated Air Filter For Industrial

Item No.: AR-ZD-G3; AR-ZD-G4
The Foldway Paper Frame Filter Mesh is designed to deliver superior air purification performance while minimizing airflow resistance, thus optimizing energy efficiency.
Request Quote PDF Format
Description Specifications Review
Description

Features:

  • Large dust holding capacity to efficiently capture and contain dust particles
  • Flame retardant synthetic fiber media for added safety and protection
  • Waterproof cardboard to prevent moisture damage and prolong filter life
  • Low initial resistance for minimal airflow restriction and energy efficiency
  • Large filtration area for maximum filtration performance


Applications:

  • Ideal for dust filtration in various industrial settings, such as manufacturing plants and construction sites
  • Suitable for use in pre-air filtration systems to improve indoor air quality in commercial and residential buildings
Specifications

Type Size(mm) Rated Airfiow Initial Pressure Drop(pa) Final Pressure drop(pa) Average Areestance
AR-ZD-G3 595x595x46 3200 35 250 85%
495x595x46 2700 35 250 85%
295x595x46 1600 35 250 85%
495x495x46 2200 35 250 85%
AR-ZD-G4 595x595x46 3200 42 250 95%
495x595x46 2700 42 250 95%
295x595x46 1600 42 250 95%
495x495x46 2200 42 250 95%
